Explained: The Untold Story of Aircraft Tires

‍DALLAS — Few parts of an airplane get as little attention as its tires. Yet these rubber rings perform a monumental task.

Picture a fully loaded jetliner: hundreds of tons hurtling down a runway. Only a handful of inflated rubber balloons bear that weight and whip across rough tarmac at speeds over 250 km/h. Every takeoff and landing depends on the tires.

In this article, we’ll peel back the layers on the hidden history, engineering, and even dramatic tales behind aircraft tires. From daring barnstorming stunts to modern carbon-fiber-age designs, it’s a ride you won’t want to miss.

From Skids to Pneumatics: Early Tires

In the very earliest days of flight, the Wright brothers’ Flyer and many contemporaries didn’t even have tires. Instead of wheels, many pioneers used wooden skids, railway cart wheels, or heavy bicycle tires strapped to their contraptions. The first soft-tyred wheels appeared around 1909.

Goodyear Tire Company’s Paul Litchfield, a key figure, recalls how his team cobbled together the first pneumatic airplane tyre. They “built some experimental tires, tested them by dropping them off the roof of a three-story building on a concrete court,” and celebrated when they “worked out satisfactorily.” (Litchfield dryly noted this wasn’t a huge compliment “as ours was the only one on the market.”) These early Goodyear tires were a game-changer, absorbing the impact of landings and saving fragile airframes from snapping. Within a year, their design was improved with reinforcing cords and a wire bead, and these became the standard for two decades.

As planes grew bigger in the 1920s and ’30s, tires had to grow in leaps. Gone were the days of flimsy bicycle wheels; new heavy bombers and transports required robust tires. For instance, by 1918, the Martin MB-1 (an early U.S. bomber) weighed over 10,000 pounds and used four big wheels (plus a tailwheel) just to spread out that weight. But even that was just the beginning. By 1928, Goodyear was already designing “floatation” tires—large, very low-pressure tires intended to roll over soft dirt without sinking. (It helped only so much: soft and muddy airfields still prompted a field of civil engineers to invent new pavement tests and standards during WWII.)

A dramatic episode happened in 1941 when an experimental U.S. heavy bomber (the XB-19) broke through the asphalt upon its first taxi test—the tires forced a foot-deep groove in the runway. The lesson was clear: aviation tires and airfield design go hand in hand.

As jetliners of the 1950s pushed air travel into the stratosphere, tyre engineers pushed back with better materials and structures. The tire technology often lagged behind demand. Not until 1981 did Michelin apply radial-ply construction (a design dating back to 1946) to aircraft tires, while Goodyear followed with the first FAA-approved radial tyre in 1983. These radial tires, with steel-belt reinforcements, can handle heavier loads and heat better than older bias-ply tires. (By contrast, nearly all airliners today use tubeless radials for reliability.)

Anatomy of a Modern Aircraft Tire

Today’s aircraft tires are engineering marvels. Each tyre is essentially a reinforced high-pressure balloon. The casing plies – layers of tough nylon or Kevlar fabric – form the tyre’s strength (its “skeleton”), while heavy-duty beads grip the metal wheel rim. Most contemporary airliner tires run tubeless (no separate inner tube) to avoid rupture. To resist tearing and overheating, manufacturers use special rubber compounds and, often, multiple layers of nylon called Inter-Tread Fabric (ITF).

For example, Dunlop’s formula is designed to resist abrasion, cutting, chunking, and heat. Even the rubber is slightly conductive: tires include carbon or metal particles, so static charge leaks off when the plane touches ground, eliminating sparks. (Early planes even dragged a metal chain to ground static before modern tires solved it.)

Aircraft tires come in two broad styles: bias-ply and radial. While virtually all jets now use radials, some smaller piston planes still have bias tires (with criss-crossed plies). Each tyre is carefully rated for the load it can carry and the speeds it can withstand. For instance, commercial main-gear tires can have load ratings upwards of 60,000 pounds per tire and inflation pressures from 56 psi up to 360 psi. (Mega-transporters like the Antonov An-225 or the military XB-19 we mentioned earlier even used dozens of inches of rubber at moderate pressure to spread enormous weight.)

For safety, tires often include a fuse-like safety plug embedded in the sidewall. If the tyre overheats, the plug melts and vents air slowly to prevent an explosion. Many Boeing and Airbus tires also have grooves or ridges called “chines” that help deflect water away from engine intakes on nose wheels, or simple skid bars to protect the casing during a tyre burst. In short, every tyre is a precisely crafted assembly of plies, wires, beads, and compounds – a little rubber fortress on each wheel.

The Wheelcount Race: Distributing Massive Weights

As aircraft became heavier, the question was how to spread that weight over more tires. The simple answer was: add wheels. A single-aisle jet like a Boeing 737 has a 6-wheel arrangement (two on the nose, four on two main bogies). A widebody twin like the 787 uses 10 wheels (four on each main gear plus two nose), and a 777 uses 14 wheels (six per main gear).

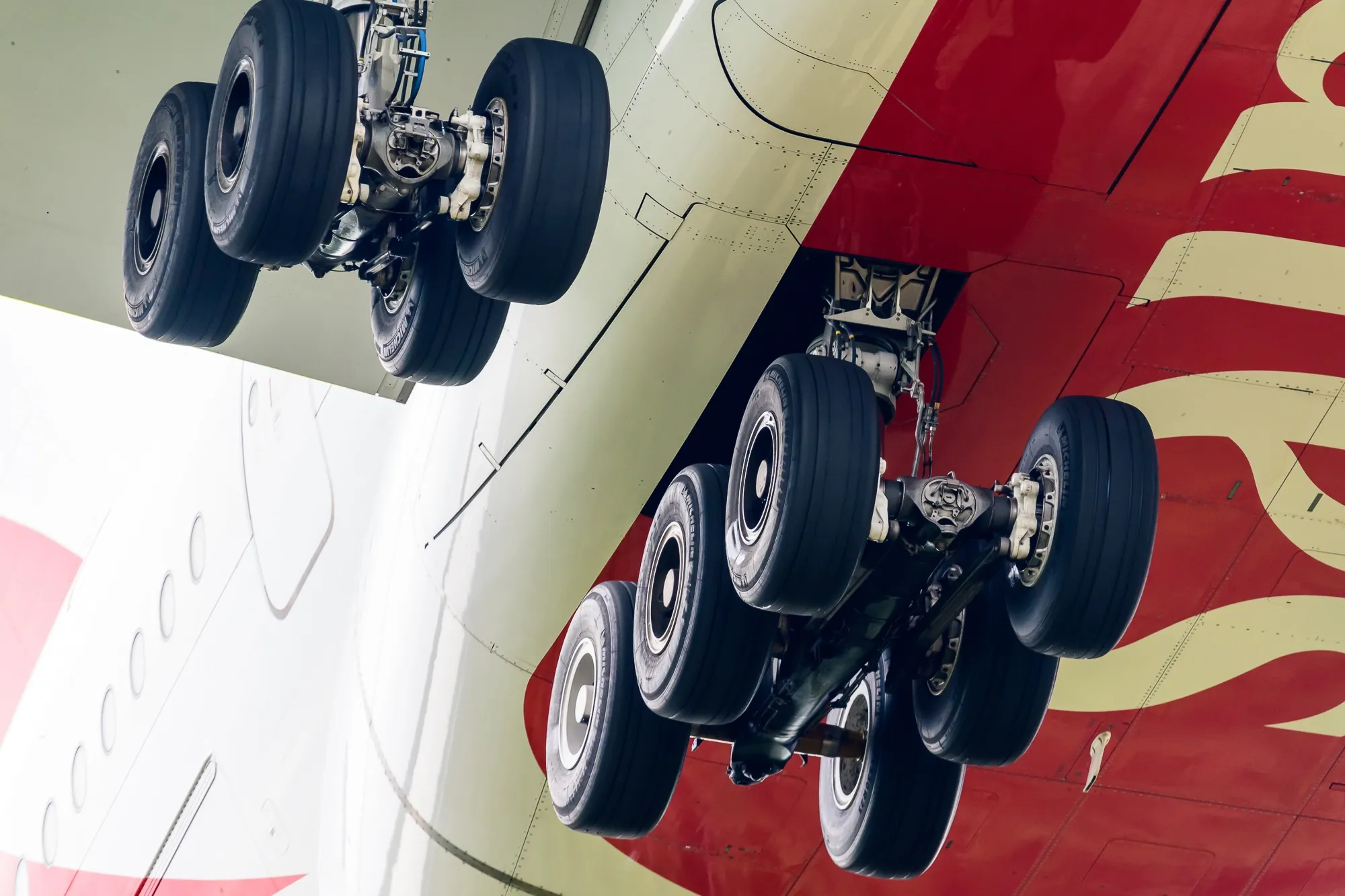

But the king of wheelcounts was the Airbus A380: its belly carries 22 tires total, arranged on four main legs plus nose gear. (Even more was the Antonov An-225 Mriya – a relic of the old USSR – with 32 wheels on its mains, always sounds crazy)

Each additional wheel lowers the ground pressure, reducing runway stress. (The A380’s 22-wheel setup means it has lower psi on the tarmac than a 767 of similar weight.) But it also raises maintenance and weight. For example, each A380 wheel is itself huge (around 1.2 meters tall) and requires new ground vehicles to service them. Even a Boeing 777 needs specially designed jacks because of its six-wheel bogies. The engineering trade-off pays off: dozens of tires can distribute an aircraft’s 300+ ton mass safely on paved runways while also giving enough braking friction.

High-Stakes Episodes: When Tires Fail

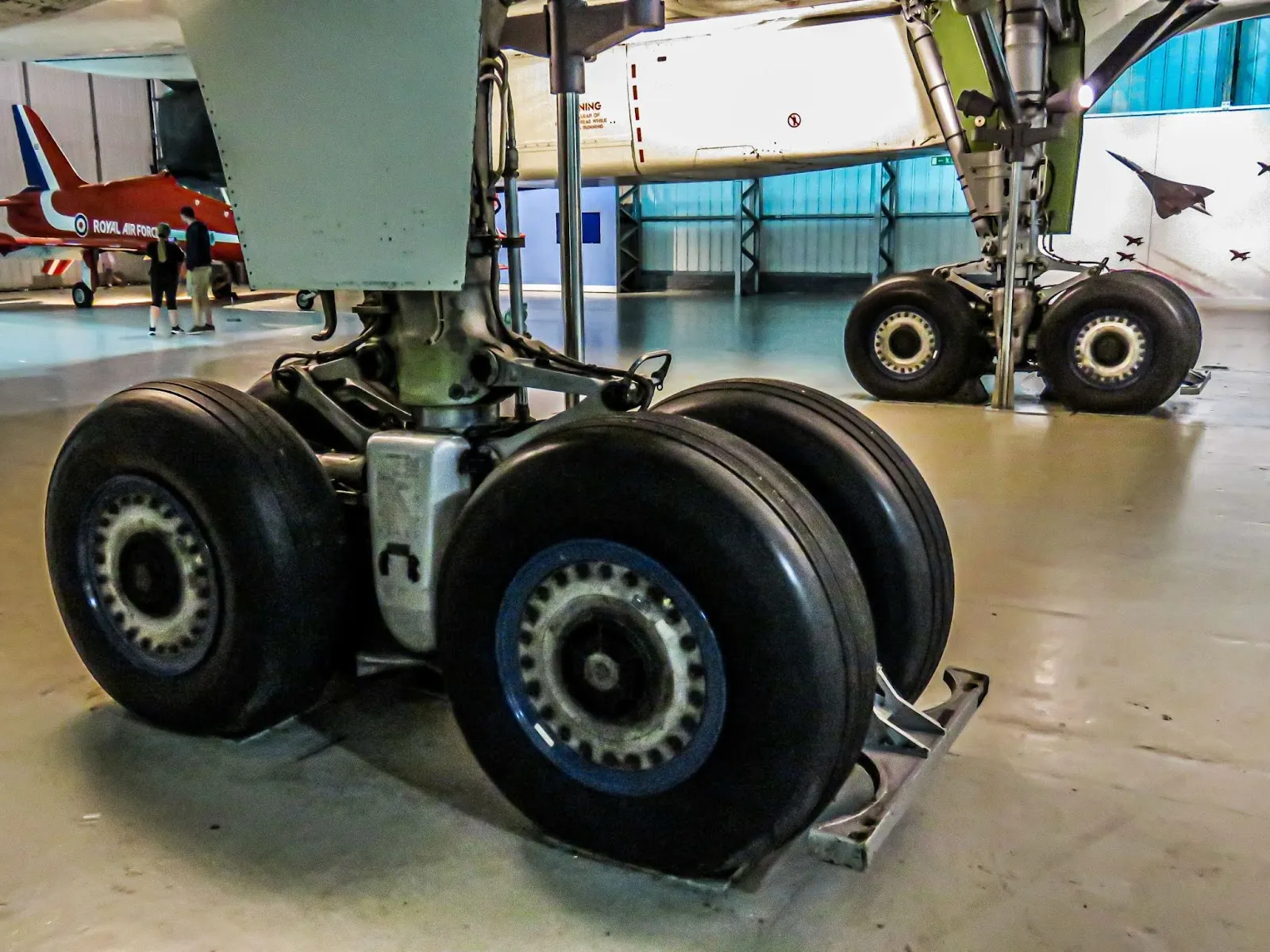

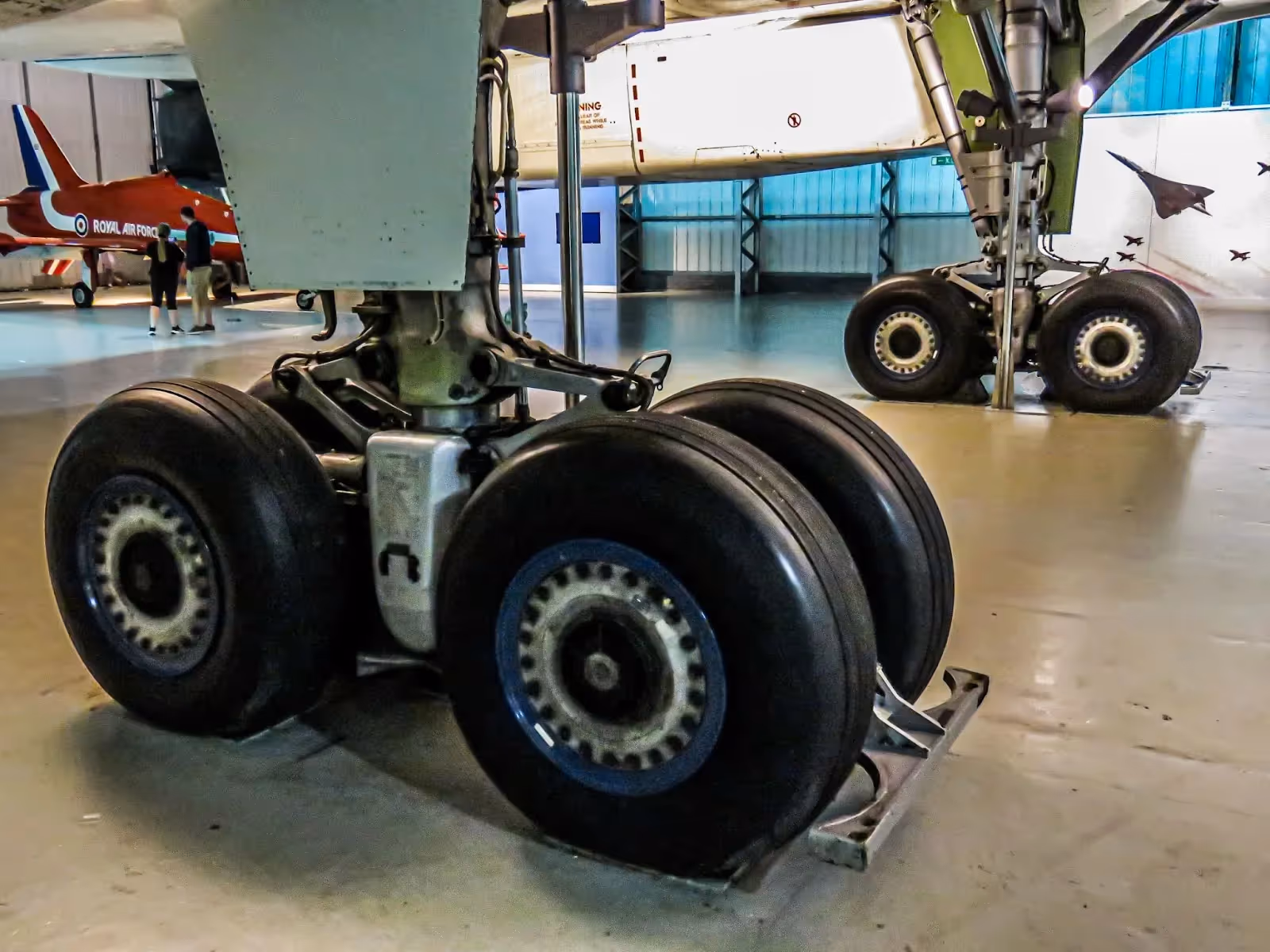

Most of the time, aircraft tires do their job silently. But history offers cautionary tales of what can happen when they don’t. Perhaps the most infamous was the Concorde disaster of July 2000. An Air France Concorde ran over debris on takeoff from Paris, shredding a tyre. A large chunk from the tyre flew up and punctured a fuel tank. The leaking fuel ignited, destroying both engines on one wing and leading to a crash that killed 113 people. This single tyre failure, and the secondary damage it caused, demonstrated how critical tires can be.

Concorde had a long history of tyre issues. By 2000, the Concorde fleet had some 70 tyre- or wheel-related incidents; at least seven had caused severe damage. Earlier incidents (in the 1970s–’90s) included tyre bursts that ruptured fuel tanks or cut hydraulic lines. After the crash, regulations were tightened: Concordes had heavier wheels, Kevlar linings, and redesigned fuel tanks, but tragically, it was too late to save the program.

Even modern jets can occasionally suffer serious tyre failures. In August 2024, a Qantas Boeing 787-9 Dreamliner (flight QF6 from Rome (FCO) to Perth (PER)) experienced a tyre burst during landing—the high-energy touchdown led to brake overheating and damage to the landing gear assembly. Although the fuselage was not seriously affected and no injuries were reported, the aircraft sustained significant damage, with early repair estimates running into the tens of millions of dollars. Investigators cited possible contributing factors, including landing speed, tyre wear, and heat buildup.

Tyre failures can occur during takeoff, landing, or even taxiing. In February 2025, Anchorage’s Ted Stevens International Airport experienced multiple tyre-related incidents involving cargo planes. Rescue crews responded to reports of possible emergency landings; two cargo jets landed with blown tires (and one aircraft was towed for repairs after landing). These cases appeared linked to gear or door springs detaching, triggering alerts from Shanghai Pudong Airport, which had found debris from inbound cargo flights

Or consider an emergency from years past: on October 7, 1926, a barnstorming pilot named Art Goebel lost a wheel mid-flight during an airshow. His wing-walking daredevil, Gladys Ingle, literally climbed from one plane to another in mid-air (wearing a spare wheel!) and fitted it onto his aircraft. That stunt, captured on film, reportedly saved him from crash-landing. (If nothing else, Ingle’s heroics show how prized that spare wheel was!)

Runway debris and pavement rubber also pose a constant threat (Foreign Object Damage). A fragment on the runway – even something as mundane as a bolt or a chunk of rubber – can cause multi-tire blowouts or flying shrapnel. After the Concorde crash, airports worldwide became more vigilant about runway inspection and rubber removal. Pilots constantly scan runways and carry extra margins for tyre failure on aborts or rejected takeoffs. In the words of one industry expert, tyre-related failures do happen—it just takes patience to see one slip through eventually. When a catastrophe happens, it tends to seize headlines precisely because tires are usually so reliable.

Keeping Them Alive: Maintenance and Retreads

One secret of the tyre world is that nearly all commercial jets don’t use brand-new tires for every flight. Instead, tires are retreaded – that is, old casings get new treads glued on – many times over. Roughly 90% of commercial airliners operate on retreads because a retreaded tyre can be just as safe as a fresh one when done correctly. Since a new widebody tyre costs on the order of US$5,000, retreading saves airlines millions. A carcass might be retreaded seven or more times before it’s finally discarded. Worldwide, this retreading practice is widespread: the global market was valued at about US$1.1 billion in 2023 and could reach US$1.6 billion by 2030. (It’s also greener: recycling one tyre means less raw rubber consumption and landfill waste.)

Retreading is not simple patchwork; it’s a precise industrial process. Tires are carefully inspected, buffed to bare rubber, and a new tread is molded on. Modern retreads can match original performance in durability and heat resistance if done to spec. Before being put back in service, tires must also undergo regular inspections: any cord breaks, cuts, embedded objects, or excessive wear (for example, many airlines retire a tyre once its grooves are shallower than ~2-3 mm) will ground the wheel. Pressure checks are routine – aircraft tires can lose a few percent of pressure each day with no leak, so crews inflate them to the rated pressure before flight. A poorly inflated tyre not only carries less load but can also overheat and fail.

Safety in the shop is critical. Aircraft tires operate at much higher pressure than car tires, making it dangerous to change a tire improperly. For example, in August 2024, a Delta TechOps facility saw a tire explode during maintenance, tragically killing two mechanics. Such accidents occur when a wheel is disassembled while still pressurized. FAA maintenance handbooks warn mechanics: always deflate the tyre completely before any disassembly. (One California report even recommended replacing multi-piece tires with solid rubber inserts to eliminate this hazard.) In short, ground crews treat tires like live hazards, using cages or remote handlers for high-pressure tires and constant vigilance.

Despite the risks, most maintenance goes smoothly. Special tools (tyre cages, break-over bars, balancing rigs) are used. Technicians measure tread depth, rotate tires between main-gear positions, and check for flat spots. A tyre that survives landing can be retreaded or at least usable as a “serviceable spare” in a swap operation. When one does wear through, the new tyre–fitted wheel gets balanced and then carefully mounted back onto the airplane with torque tools. (As a safety tip, crews often lean the wheel slightly during nut removal, so if it does give, it doesn’t blast off blindly.) It is a low-profile part of operations, but downtime and fuel savings push airlines to maximize tyre life wherever possible.

Stories from the Tarmac

Aircraft tires also have their quirks and fun facts. Consider Gladys Ingle, the woman mentioned above, who in 1926 saved a crashing biplane by doing an in-flight wheel swap. It was no movie magic: after pilot Art Goebel’s wheel fell off during a stunt, Gladys stepped from one plane to another (with a spare tyre on her back), climbed down, and bolted it on. Airshow spectators didn’t initially realize it was unplanned! (Her later life included some modesty–“we like all the fluffy dresses like regular girls”, she once remarked – and some opinions on fashion, but that’s another story.) Her madcap feat is a vivid illustration of how vital even one wheel can be.

Another oddity: in the early days of piston planes, static electricity was a concern. Airplanes once had a long metal static wick hanging from the tail or gear struts to touch ground first and bleed off charge. Today’s tires include carbon compounds, so the rubber itself drains charge, and aircraft don’t need those whiskers anymore.

Here’s an incredible stat: a single modern airliner tyre can cost around US$5,000, roughly the price of a used luxury car, as mentioned before. Yet, because it can be retreaded multiple times, each tyre ultimately costs only a fraction per landing. On a typical airliner schedule, tires last 150–400 landings before they’re replaced (depending on aircraft type and usage). A tire on the main gear of an Airbus A320, for example, might last about a year of service before needing a retread. And yes, the rubber at the bottom of your cup of coffee, known as “coffee creamer,” is a light silicone grease they put on to keep the tyre from sticking to the hot metal rim during inflation!

Looking Ahead: Lighter, Greener, Smarter Tires

Aircraft tyre makers aren’t resting on their laurels. The big companies (Goodyear, Michelin, Bridgestone, Dunlop, etc.) continuously push new materials and designs. For instance, Michelin unveiled the Air X Sky Light in 2023, a radical new tyre for business jets and eventually airliners, that is 10–20% lighter than its predecessors. It uses exotic fibers and composites (Michelin calls them “hybrid cables”) to shave weight while giving 15–20% longer life.

Less weight means less fuel burn: Michelin claims an A320 could shed ~75 kg of tyre weight and a 777 could save 250 kg, which for a fleet translates into millions of dollars of fuel saved and hundreds of tons of CO₂ reduction per year. And the company is pushing eco-friendly rubber too: the new tires incorporate more sustainable materials (toward a goal of 100% by 2050). As of now, this technology has not been surpassed by any player in the market.

“Connected” tyre systems started emerging as well. Some aircraft can be equipped with wireless pressure/temperature sensors in the wheel hub, sending real-time data to the cockpit. (Michelin and Safran have a “PresSense” system for tyre pressure monitoring.) Such sensors can alert crews to slow leaks or overheating before a tyre bursts. Maintenance shops also use digital tools: high-speed cameras and X-ray machines can non-destructively inspect tyre casings for internal flaws.

So why aren’t more airlines jumping on it?

Turns out, the adoption curve is slower than you’d think. Tyre sensors may sound simple, but they add new layers of certification, data management, and integration with existing maintenance systems. Airlines already have tightly scheduled maintenance routines, and introducing new tech, even helpful tech, takes time, training, and money. Some carriers are also hesitant about relying on embedded electronics in such a high-stress, heat-exposed environment.

PresSense might not be a household name in aviation circles yet, but it’s an early signal that the humble aircraft tyre is getting smarter. And while it’s not on every plane just yet, it shows that even the most overlooked parts of an aircraft are being reimagined for the digital age.

We may even see radical new designs: concepts like airless “sponge tires” or self-regenerating treads have been toyed with on the ground. For now, though, aviation remains dominated by high-pressure pneumatics because they’re proven and relatively simple. In the medium term, expect tires to become lighter, cooler-running, and more connected – but they’ll still resemble the ones on your car, just colossal and beefier.

The Next Time You Fly…

…take a moment to appreciate the tires quietly doing their job under you. With each takeoff roll, the tires absorb tremendous shock; with each landing, they dissipate energy and grip the runway to bring you safely to a stop. Over a century of innovation – from Goodyear’s early drop-tested tires to today’s space-saving carbon beads – has gone into those rubber toroids. Whether gliding us into a smoother landing or, God forbid, saving us from disaster (hello, Gladys Ingle!), tires have earned their place in aviation lore.

Next time the flight attendant pages you for the “fasten seatbelt” sign before landing, just remember the tires beneath you, those round black heroes are on duty 24/7, the unsung shock absorbers of our journeys through the skies.
