Explained: High-Aspect Ratio vs. Blended Wing Body

DALLAS — A compromise among aerodynamic efficiency, structural strength, and practical operation creates every commercial airliner. With the world of aviation faced with ever-higher fuel prices and rising sustainability challenges, attention has shifted toward two possible solutions: high-aspect-ratio wings and blended wing body shapes.

Both efforts aim to maximize lift-to-drag ratios, reduce fuel consumption, and optimize configurations for long-range flights in an era characterized by increasingly stringent emissions requirements.

High-aspect-ratio wings push conventional tube-and-wing aircraft to record-high aerodynamic performance levels, and blended wing body concepts rethink the entire airframe as a lifting surface. Wind-tunnel tested, simulated, and produced in a small series of prototypes, these concepts may define the transport aircraft of the future.

Comprehending High-Aspect Ratio Wings

Aspect ratio, the ratio of wingspan to chord length, has definite influences on drag characteristics. Increased aspect ratios reduce induced drag and consequently increase cruise efficiency. The majority of transport aircraft, ranging from commercial jet transports to military cargo planes, already have relatively high aspect ratios because they cruise at narrow lift coefficient and Mach number ranges.

Extended tests in wind tunnels have focused on cruise flight at transonic speeds, where drag reduction is most beneficial. High-aspect-ratio wings are troublesome except in cruise. Buffet margins, flutter potentialities, and off-cruise performance require conservative extrapolation of test results, particularly at high Reynolds numbers.

Different wind tunnels worldwide have developed unique test procedures to simulate these conditions; however, comparisons are not made due to limitations in tunnel design, test length, and Reynolds number. Two-dimensional boundary-layer control techniques are typically altered; however, three-dimensional flow fields over transport geometries render their application impractical. Therefore, test procedure development is as dependable as wing designs themselves.

Aerostructural Optimization of High-Aspect Ratio Wings

Optimization studies demonstrate that fuel efficiency gains can be achieved by effectively balancing aerodynamic and structural trade-offs. An increase in span reduces induced drag but adds structural weight and aeroelastic deformation risks. Adaptive structures such as trailing-edge control surfaces are today regarded as a requirement. Modulating lift during cruise and maneuver, these surfaces minimize drag and alleviate wing loading.

Advanced composite structures make the designs even more sophisticated. Strain-limiting and post-buckling-capable materials enable weight reduction without sacrificing strength. High-fidelity simulation techniques combine static aeroelastic effects across various flight conditions to further optimize these.

Results of such studies suggest an optimum aspect ratio of around 12 for long-distance aircraft. Up to 13.5 gives a slight added fuel advantage, since structural penalties offset aerodynamic gains. This plateau reveals a fundamental limitation: beyond a certain point, high aspect ratios no longer yield significant efficiency gains.

Blended Wing Body: A Radical Alternative

Unlike incremental differences in wing shape, the blended wing body (BWB) is a revolutionary departure from conventional configurations. The fuselage merges with the wing in this configuration to produce a single continuous lifting surface. By eliminating the traditional tube, the wetted area is eliminated and the lift-to-drag characteristics are improved.

Comparative mission studies indicate the benefits. Using computational fluid dynamics and surrogate models, one study sized a BWB and a tube-and-wing aircraft to carry 225 passengers on a 5,000 nautical mile range. Both utilized the same notional 2030-era engines which had 43,000 pounds of thrust.

They discovered the BWB yielded 15–20% higher cruise lift-to-drag ratios, 24% fuel burn reduction, and 15% lower ramp weight compared to a metallic material tube-and-wing. Even versus an advanced composite tube-and-wing, the BWB demonstrated a 20% fuel burn advantage and 10% lighter weight. When the engines were sized for each configuration, the BWB yielded up to 25% block fuel savings compared to traditional configurations.

Advanced Configurations, Performance Testing

Aside from baseline BWB configurations, experimental designs, such as swallow-tail blended wings, also incorporate stealth and laminar flow into their designs. When tested in wind tunnels, the designs exhibited lift-to-drag ratios of approximately 31.2. These results show not only efficiency gains but also achievable control and stability characteristics.

Flow visualization methods, such as separation wire tests and infrared transition measurements, verify aerodynamic design concepts by locating points like downwash interactions on swallow tails. This information highlights the integration difficulties inherent to BWB aircraft, where aerodynamic, structural, and flight control components must be optimized simultaneously.

Historical Lessons: Limits, Opportunities

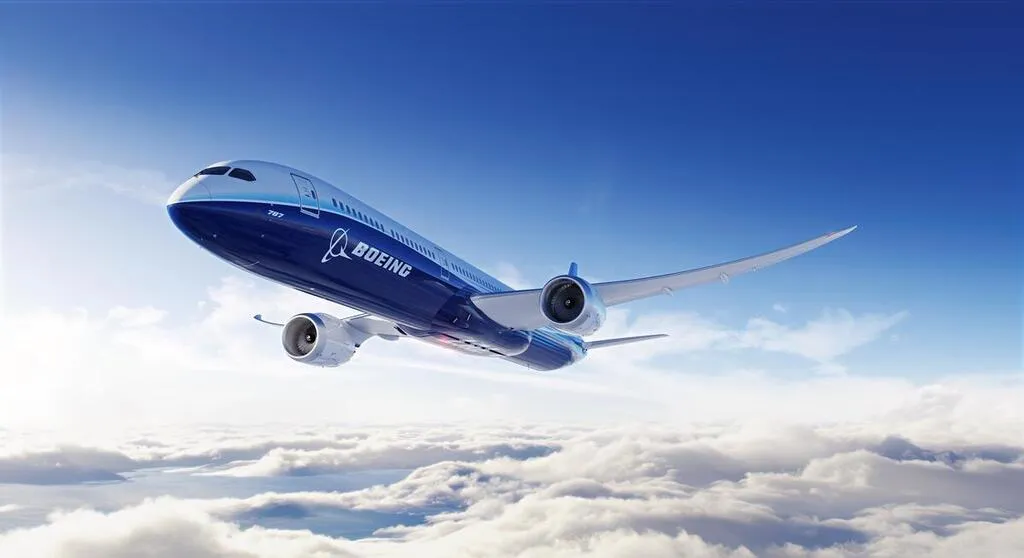

The company has, at times, pushed both methods to their extremes. One traditional example of the history of high-aspect-ratio wings is the creation of the Boeing 787 Dreamliner, which, although not an extreme example, demonstrated how composite structure technology enabled longer and thinner wings with improved lift-to-drag ratios and lower fuel burn.

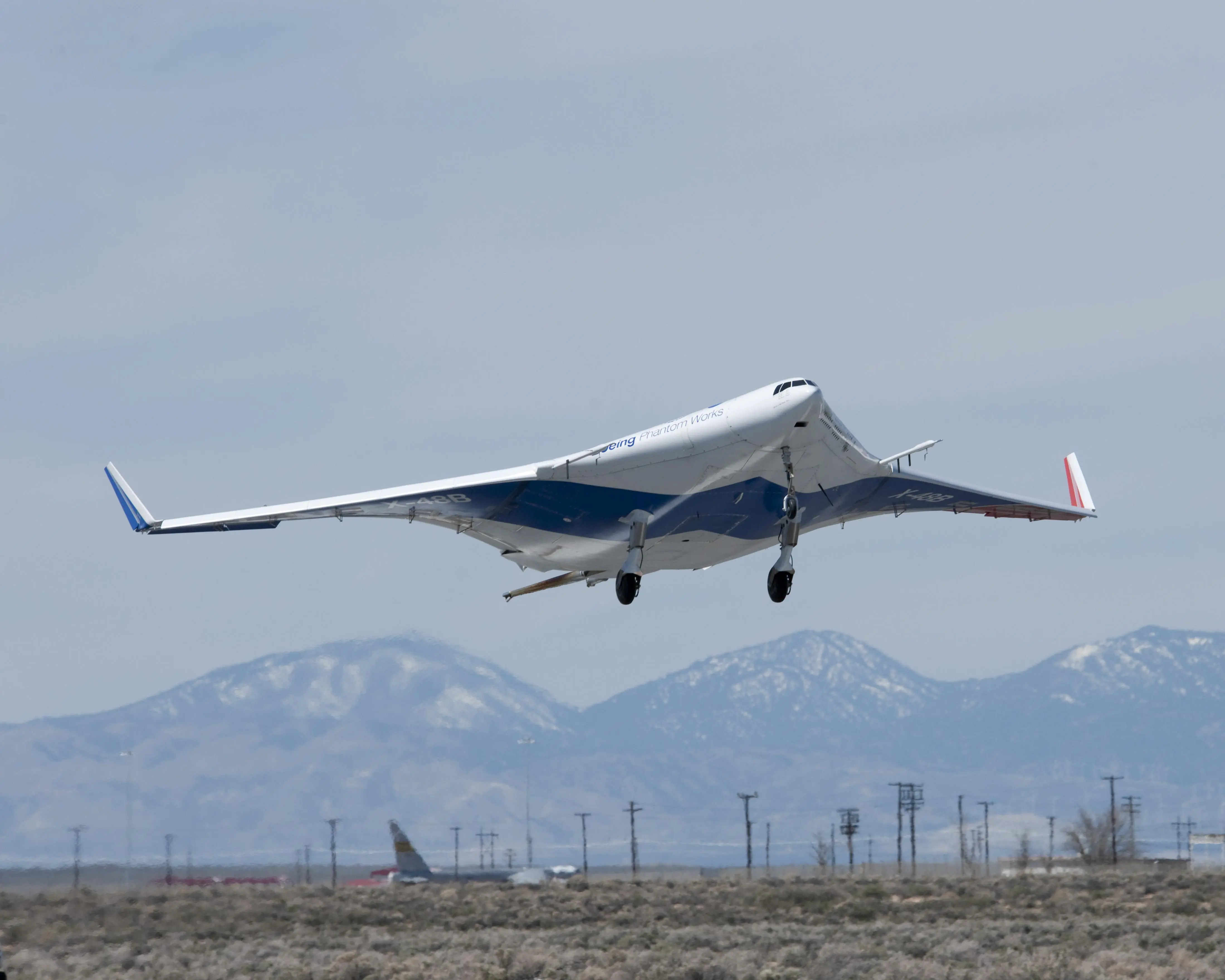

For non-traditional designs, NASA's X-48 program is a standard. Experimental and small-scale, it validated many of the BWB aerodynamics and control integration concepts, setting the stage for today's industry concepts. Such examples highlight how both evolutionary and revolutionary paths are open, one extending current engineering convention, the other rethinking the airframe entirely.

Structural, Operational Challenges

For high-aspect-ratio configurations, flutter remains a significant issue. Thin wings distort under aerodynamic loading, changing flow and having the potential to cause instability. Structural solutions often need to compromise stiffness for weight, frequently utilizing exotic composites.

BWB aircraft pose unique challenges. Cabin pressurization, emergency evacuation requirements, and airport compatibility are key considerations. Absence of a conventional fuselage complicates regulatory certification and public acceptance. Moreover, the mass production of blended configurations requires new manufacturing techniques, as existing assembly lines are optimized for tube-and-wing construction.

The Role of Simulation, Testing

Advances in computational fluid dynamics (CFD) and surrogate modeling have been pushing the evaluation of both concepts. CFD offers accurate buffet onset prediction and aeroelastic response for all flight regimes in high-aspect-ratio wings. In BWB, CFD enables multi-disciplinary optimization, balancing structures, aerodynamics, and systems integration.

Yet physical testing remains. High Reynolds number wind tunnel testing continues to validate models, and scaled demonstrators, such as the X-48, confirm flight handling qualities. The future of certification will be a union of high-fidelity simulation and sound physical testing to prove safety and reliability.

Looking Ahead

As aviation enters its era of stringent environmental regulation, innovation in wing design will be at the forefront. High-aspect-ratio wings with adaptive surfaces and advanced composites are an attainable step for near-term programs. They challenge conventional designs while offering measurable fuel efficiency gains.

Blended wing bodies, however, represent a paradigm breakthrough. Their own fuel burn potential of 20–25% could dramatically reshape the economics and sustainability of long-range flight. But the path to certification and adoption is long, requiring not only technical demonstration but also regulatory reform and social acceptance.

The direction of future wing development may not have to be an either-or situation. Hybrid solutions, which combine elements of stretched wings with partial fuselage and lifting surface integration, may strike a balance between innovation and practicality.

Conclusion

Wing design remains a cornerstone of aviation's pursuit of sustainability. High-aspect-ratio wings demonstrate the effectiveness of incremental optimization in achieving efficiency gains in established architectures. Blended wing bodies demonstrate the disruptive value of redesigned airframes to attain a more optimized lift-to-drag ratio and reduced fuel consumption.

While the industry weighs cost, certification, and performance, both paths remain viable options. It is not a question of whether high-aspect-ratio or blended wing body will define the future, but how each will enable a diversified set of tools to achieve solutions, propelling aviation to its environmental and economic potential.
