Explained: Extra Takeoff Power from Water Injection

‍DALLAS — Long before the arrival of high-bypass, fuel-efficient turbofan engines, aviation relied on what might seem like an unusual trick: injecting water into jet engines to squeeze out extra thrust and conquer the skies.

​What makes this trick fascinating is how unnecessary it seems in today's world. Modern high-bypass turbofans generate immense power, easily lifting hundreds of tons into the sky.

Engines Before the Turbofan Revolution

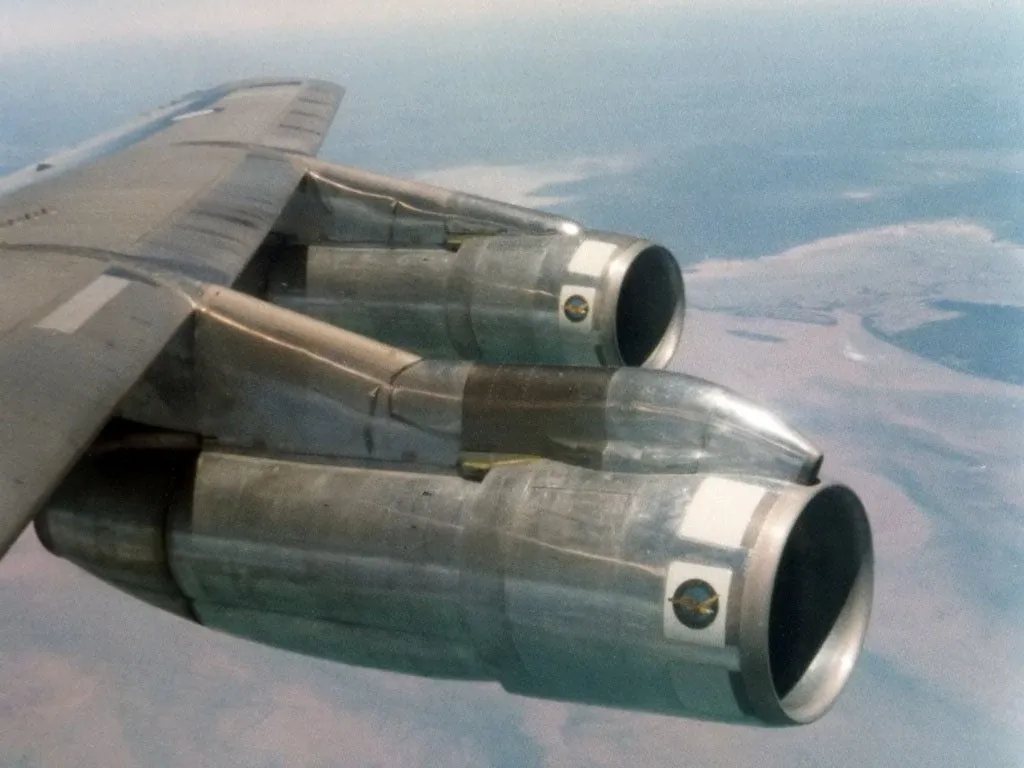

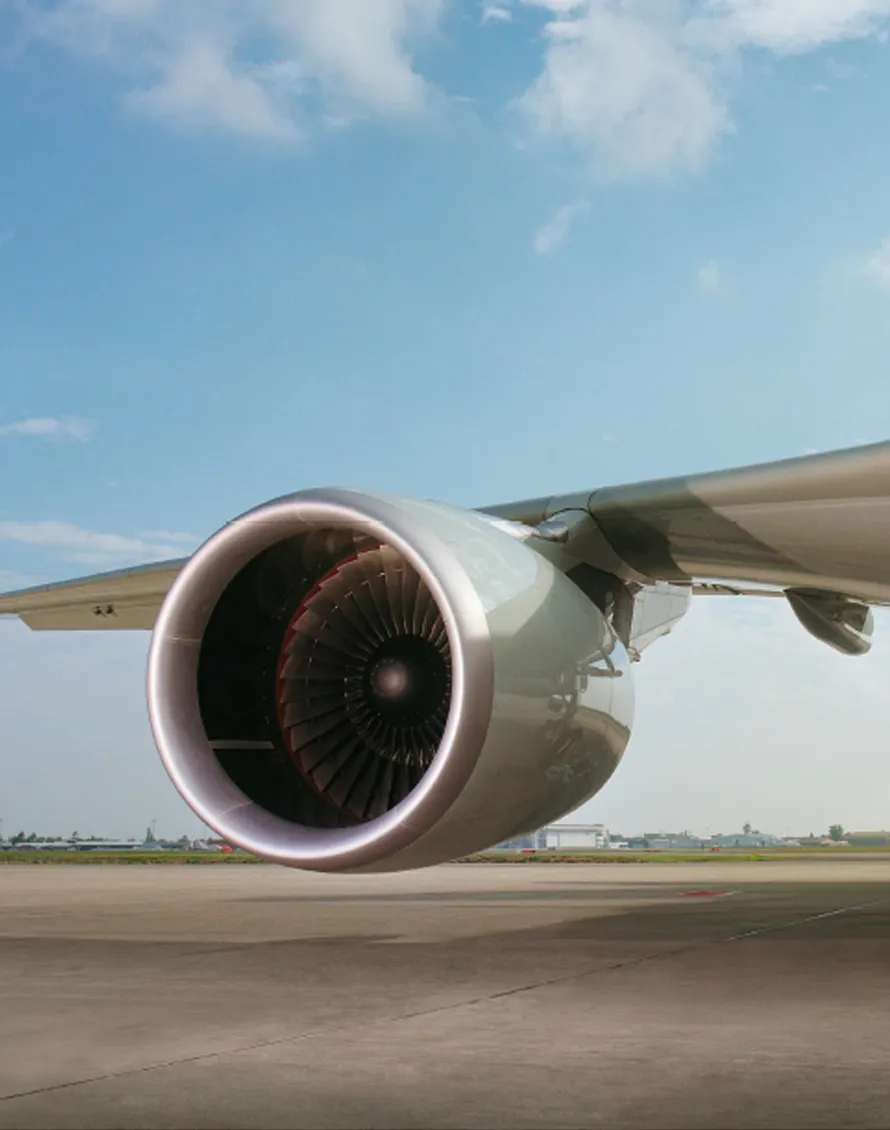

If you compare a JT3D series turbofan—the type that powered early jetliners, such as the Boeing 707 and DC-8—to a CF6, one of the first true high-bypass turbofans, the difference is striking. The JT3D appears small and narrow in diameter, while the CF6 is a massive engine designed to consume huge volumes of air.

But there was a problem: these early turbojets had significant drawbacks: they were noisy, fuel-hungry, and above all, relatively weak in terms of thrust. This became a serious problem during fully loaded departures, takeoffs from high-altitude airfields, or hot summer days. Under those conditions, the engines often struggled to generate the thrust required for a safe departure.

Simply burning more fuel to boost power wasn’t an option; it would push exhaust gas temperatures (EGT) beyond safe limits, risking severe engine damage or outright failure. To overcome this, engineers introduced a clever solution: injecting a water-methanol mixture directly into the engine during takeoff and initial climb, the phases where maximum thrust was most critical.

The Physics Behind Water Injection

The science behind water injection was straightforward. When fine droplets of water entered the hot airflow inside the engine, they absorbed heat as they evaporated. This cooling effect lowered the intake temperature, which made the air denser and packed with more oxygen molecules.

Denser, oxygen-rich air meant the engine could burn additional fuel efficiently without overheating. Methanol was often mixed with the water to prevent freezing at altitude and to provide a slight extra boost in energy. The result was a short burst of additional power, often in the range of 10–15%, that gave aircraft the thrust they needed to leave the runway with confidence.

Operational Use in Aviation

Water injection was widely used during the early jet age, particularly on heavy aircraft such as the Boeing 747. But its application wasn’t limited to commercial aviation; it actually gained traction first in the military.

Strategic long-range, heavy bomber, such as the eight-engine Boeing B-52 Stratofortress, and aerial refuelers, like the KC-135 (Featured image), relied heavily on water injection. These aircraft would often carry hefty payloads of fuel or weapons, making them ideal candidates for the extra thrust the system could provide.

Commercial airliners, including early Boeing 707s, 720s, and the first-generation 747s, also used water injection to ensure safe takeoff performance, particularly from “hot and high” airports. The boost typically lasted for a minute or two, just enough to get the aircraft safely airborne.

To make this possible, the aircraft carried dedicated water tanks, often holding hundreds of gallons of water or a water-methanol mixture. These tanks were plumbed directly into the engines and emptied rapidly during the takeoff roll, with the entire supply usually consumed in just a couple of minutes.

Olympic Airways Flight 411: A Close Call

On August 9, 1978, Olympic Airways Flight 411, a Boeing 747-200 headed for New York, rolled down the runway in Athens with 418 people onboard. The jet was heavy with fuel and passengers, and the temperature outside was a scorching 42°C. In such conditions, water injection wasn’t just helpful; it was essential.

At first, the takeoff seemed normal. But just after liftoff, engine #3 failed. To make things worse, the flight engineer, thinking the water supply had run out, shut off the pumps. Almost instantly, the big jet began to lose speed and height. Flying at little more than rooftop level, the 747 clipped antennas and startled people on the ground as it dragged itself over the city.

For a few terrifying minutes, it looked like the plane might not make it. Then the crew realized the mistake, switched the pumps back on, and the engines came alive again with the extra thrust. Slowly, the jumbo gained speed and climbed away from Athens. The pilots steered it out toward the sea, dumped fuel, and brought it back safely to Ellinikon International Airport (ATH).

Flight 411 became one of the closest calls in 747 history, and a stark reminder of how much early jumbo jets depended on water injection when conditions pushed them to the edge.

The Drawbacks of Water Injection

Despite reducing Nitrogen emissions and improving the overall performance, the technique came with its own set of drawbacks. The most obvious was the extra weight. Carrying tanks large enough to store hundreds of gallons of water meant more weight on every flight, resulting in increased fuel consumption. This was especially wasteful considering that water injection was only needed during tough, hot, or high-altitude conditions, not in everyday routine operations. Yet the tanks remained there all the time, acting as dead weight and hurting fuel efficiency.

Maintenance was another headache. Pumping water and methanol through jet engines left behind corrosion, deposits, and extra wear. Airlines had to spend more time and money maintaining engines when water injection was in use.

The End of Water Injection, the Rise of Modern Engines

By the 1970s and 80s, engine manufacturers were shifting toward high-bypass turbofan engines. These new powerplants were much larger in diameter and far more fuel-efficient than the earlier low-bypass designs. In 1971, American engine maker General Electric introduced the CF6, which would go on to power aircraft such as the DC-10 and Boeing 747, and later many others.

The CF6 quickly earned a reputation as one of the most powerful jet engines of its era. With a bypass ratio of 5.3:1, very high for the time, it could generate an impressive 185 kilonewtons of thrust in its early variants. This leap in performance solved the low-thrust problems that had forced airlines to rely on water injection. As a result, the need for such systems disappeared, marking the end of water injection in commercial aviation.

Conclusion

Water injection might sound unusual today, but back in the early jet age, it was a clever workaround for the limits of those engines. It gave planes the extra boost they needed, especially when carrying heavy loads or flying in hot weather. Once powerful high-bypass turbofans, such as the GE CF6, came along, the system became unnecessary, but it still stands as a clever example of how engineers found ways to push early jet technology further.
